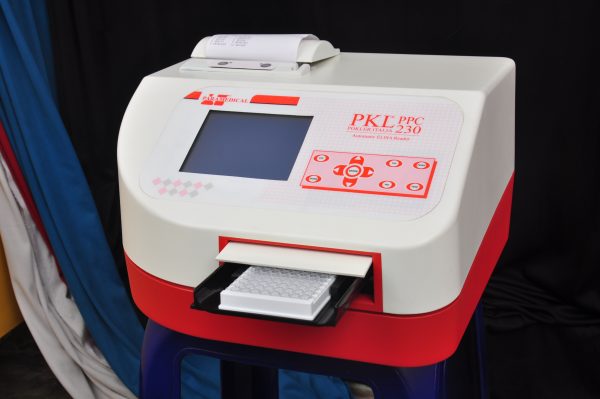

Elisa reader PKL PPC 230

High accuracy optical measuring system
Touch screen, large LCD display,easy to operate
Multiple plate formats capability
Extensive on-board data analysis
8 channels, reading whole plate in 5 seconds
Microplate shaking function, convenient for intermixing
PC software optional



Description



Features:
Accommodates different Microplate geometries
Plate shaking facility with variable speed and duration
Ability to read plate within seconds
Digital light control with unique circuit for long lamp life
Matrix mode for Result printing
Multiple blank setting in cut off mode
Storage of calibration curves
Storage of Plate results
Bichromatic and Trichromatic Readings
Various Curve fit mode like: Linear, Point to Point will scales such as Log ABS/Conc, Logit ABS/Log Conc,ABS/Conc, Log ABS/Log Conc etc.

TECHNICAL SPECIFICATIONS:
Human Machine Interface: TOUCH PANEL/KEYPAD
Linear Measurement Range: 0.000 to 3.500 Absorbance Units (A)
Photometric Accuracy: ±2 % or 0.007 whichever is higher, from 0 to 1.5 A, ±3 % from 1.5 A to 3.5 A
Drift: <0.005 A/hr
Optical measurement: 8 Channel

Filters:
Type of filter: High Quality Narrow band Interference
Wave Length: 405nm, 450 nm, 492 nm, 630 nm & Four Optional
Half Bandwidth: 10nm ± 2nm
Selection: Automatic by Stepper Motor

Display: 6″ Graphics LCD, Negative Blue, STN
Curve Plotting: Graphical Representation on Printer
Plate Carrier Movement: Precisely trough the stepper motor
Printer: Built in Thermal Printer 52 columns
Memory: Battery back up for 250 tests and more than 2500 results
Analysis Mode: Absorbance (Normal & Differential) Cut – off Multi – Standard
% Absorbance Single Standard Uptake Kinetic
RS232 Serial Port/USB: 9600 baud, 8 data, 1 stop, no parity bits/USB
Power: 75 Watts/115 – 230 Volts ± 10%, 50/60 Hz
Weight: 10 Kgs. (Approx)
