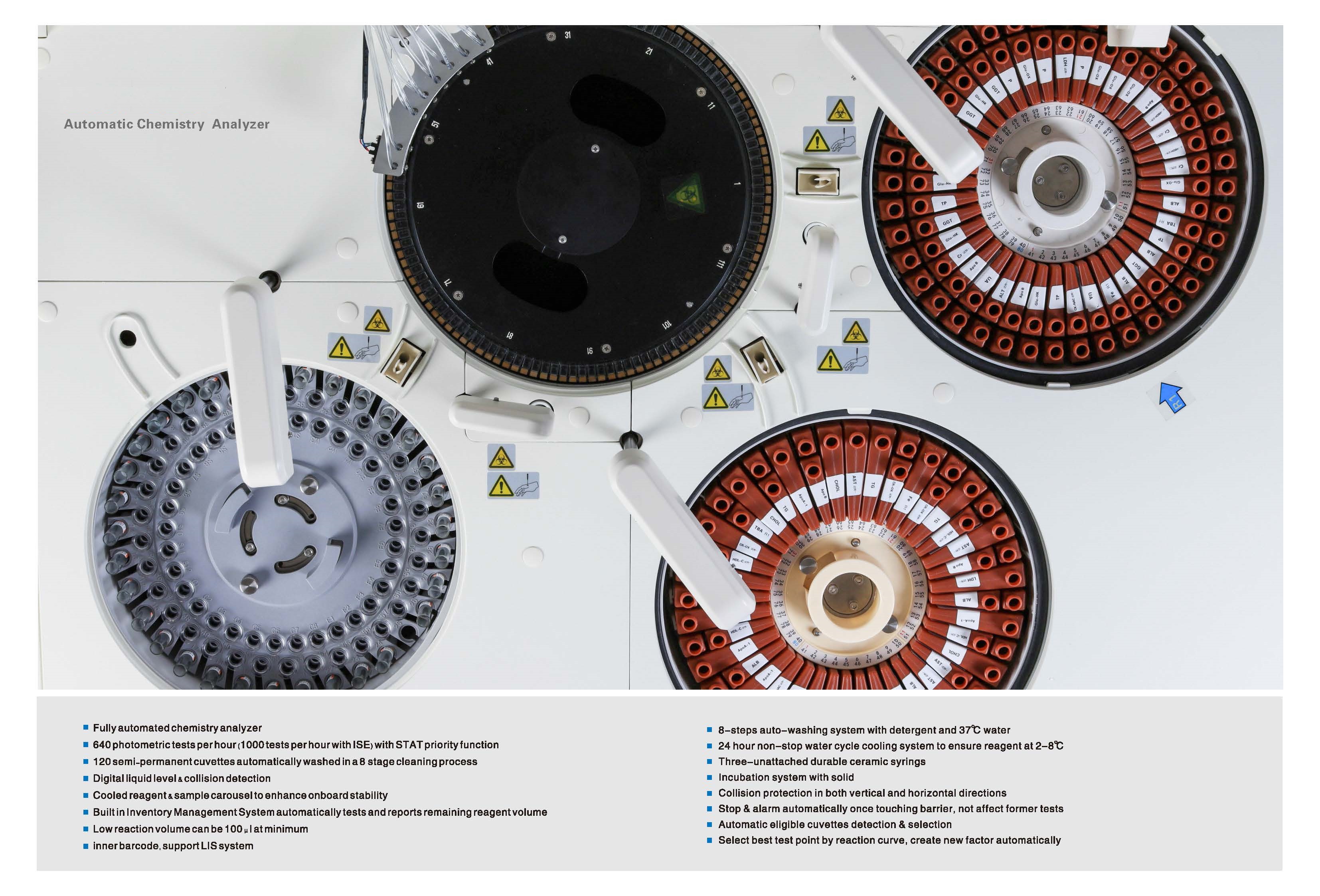

Clinical Chemistry Automatic PKL PPC 700

  • 8-steps auto-washing system with detergent and 37water
  • 24 hour non-stop water cycle cooling system to ensure reagent at 2-8
  • Three-unattached durable ceramic syrings
  • Incubation system with solid
  • Collision protection in both vertical and horizontal directions
  • Stop & alarm automatically once touching barrier, not affect former tests
  • Automatic eligible cuvettes detection & selection
  • Select best test point by reaction curve, create new factor automatically
  • Brochure-PKLPPC700


Assay methods: End Point, Kinetic, Fix time etc.

Principle: Photoelectric Colorimetry

Light Source: Halogen lamp 12V/20W

Photometry range: 0~3.2Abs

Resolution: 0.0001Abs

Wavelength: 12 wavelengths (340nm、405nm、450nm、 480nm、505nm、546nm、570nm、605nm、660nm、700nm、750nm、800nm) using grating

Throughput: Constant 640 tests/hour, 1000 tests/hour with ISE

Reagent tray: 160 reagent positions

Sample tray: 99sample positions, including detergent position, standard positions, QC positions, STAT positions

Reaction tray: 120 reaction positions

Sample volume: 2~100ul,with 0.1ul increment

Reagent volume: 5~1000ul, with 0.5ul increment

Minimum reaction volume: 150ul

Maximum reaction time: 10 minutes

Water Consumption: less than 25L/hour under working status

Clean unit: 8-steps auto-washing system

Calibration: Calibration reset, select best test point by reaction curve, no need second calibration

Control rules: Westgard multi-rule, Cumulative sum check, Twin plot

Relative humidity: ≤85% Atmospheric pressure: 86~106kPa
