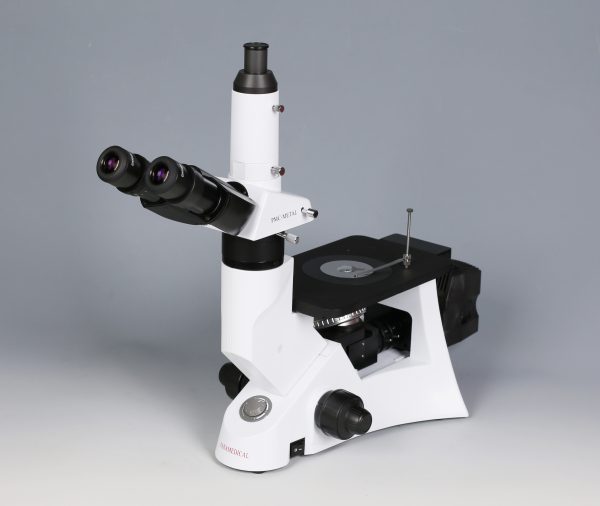

Inverted Metallurgic Microscope PMC-Metal


  • Inverted Metallurgic Microscope
  • PMC-Metal

Trinocular head inclined at 30° , interpupillary distance 48-75mm
High-Point Extra Wide Field Eyepiece: EW10X/20mm
Infinite Plan Objectives: 4X/0.1 WD17,3mm ,10X/0.25,WD10mm,PH20X/0.4 & 40X/0.6 WD2.1mm
Quintuple nosepiece
Plain stage with clips
Coaxial coarse & fine adjustment , vertical objective movement , coarse stroke 37,7 mm. per rotation , fine stroke 0,2 mm. per rotation
Koheler illumination S.led or Halogen lamp 6V/30W
Filters blue , green , yellow and ground glass
Polarization set
The Attachable Mechanical Stage (120x78mm) is optional
Video / Photo adapter is optional
